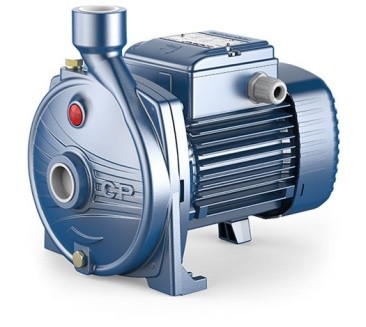

Designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Reliable and easy to operate, these pumps have extensive application in domestic and civil settings, particularly for distributing water with small to medium-sized pressure tanks, transferring fluids, and watering orchards and gardens.
Technical Features
| Technical Features | ||
| Flow rate | up to 160 l/min (9.6 m³/h) | |
| Head up | up to 56 m | |
| Manometric suction head | up to 7 m | |
| Liquid temperature | between -10 °C and +90 °C | |
| Ambient temperature | up to +40 °C | |
| Maximum working pressure | – 6 bar for CP 100-130-132-150-158 – 10 bar for CP 170-190-200 |
|
| Motor | 2 poles | |
| Ingress protection rating | IP X4 |
Construction Material
| Construction Material | ||
| Pump housing | Cast iron | |
| Impeller | Stainless steel AISI 304 | |
| Shaft | Stainless steel AISI 431 | |
| Pump cover | Stainless steel AISI 304 Cast iron for CP 170-170M-190-200 |
