Proper level regulation is critical for operational reliability. Lack of proper regulation can cause improper operation, pump damage or, in the worst case, overflow that results in environmental and economic consequences. With over a decade of experience and countless satisfied users, the natural choice for level regulation is the Flygt ENM-10.
Simple, reliable and effective

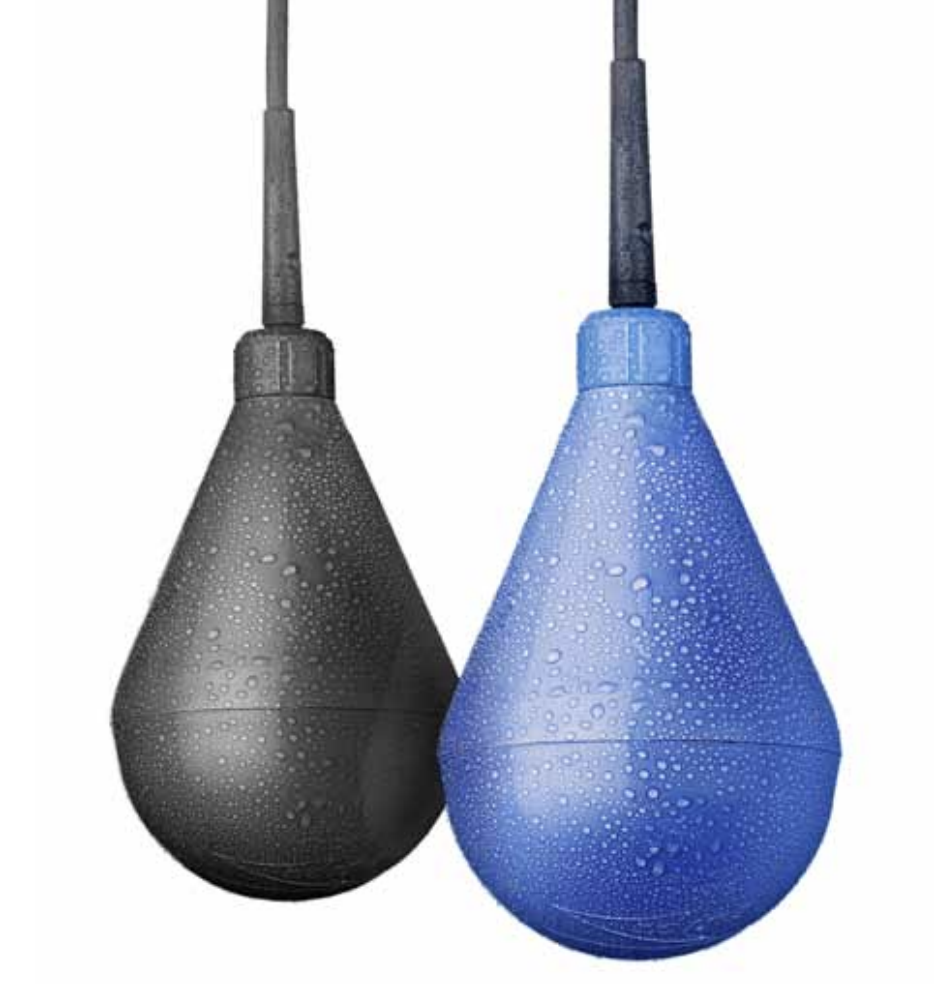

The Flygt ENM-10 level regulators are the ideal choice for most level control applications, such as wastewater pumping stations and ground water or drainage pumping. When the liquid level reaches the regulator, the bulb tilts, activating the internal microswitch, which starts or stops a pump or triggers an alarm device.
Practically maintenance free
The outer casing of Flygt ENM-10 level regulators are resistant to most aggressive liquids. The cable material prevents buildup of deposits and other impurities. Rather than floating on the surface, ENM-10 hangs immersed in the liquid. This prevents the cables from tangling when several regulators are used.
Xylem testing indicates Flygt ENM-10 level regulators last sever- al times longer than most standard level regulators. This ensures reliable operation and a low degree of maintenance, thereby keeping service costs down to a minimum over the life cycle.
Environmentally friendly
The Flygt ENM-10 level regulator contains no harmful or toxic materials such as lead or mercury and does not require the use of any adhesives. All plastic components are welded and screwed together.
Technical Specifications
| Standard version | Ex-approved version | |
|---|---|---|
| Cable lengths | 6, 13, 20, 30 or 50 m*
(20, 42, 65, 100 or 167 ft.) |
6, 13, or 20 m
(20, 42 or 65 ft.) |
| Liquid density | Between 0.95 and 1.10 g/cm³* | Between 0.95 and 1.10 g/cm³ |
| Materials | Body: Polypropylene Bending relief: EPDM rubber Cable: Special compound PVC & NBR/PVC |
Body: Conductive polypropylene/carbon black Bending relief: NBR/PVC rubber Cable: NBR/PVC |
| Liquid temperature | Min. 0°C (32°F) Max. 60°C (140°F) |
Min. 0°C (32°F) Max. 60°C (140°F) |
| Ingress protection | IP 68 | IP 68 |
| Electrical range (microswitch) | Interrupting capacity: AC: 250 V/10 A resistive load AC: 250 V/3 A inductive load at cosΦ = 0.5 DC: 24 V/10 mA min., 6 A max. Note that local regulations may limit the voltage. |
Interrupting capacity: AC: 250 V/10 A resistive load AC: 250 V/3 A inductive load at cosΦ = 0.5 DC: 24 V/10 mA min., 6 A max. Note that local regulations may limit the voltage. |
| Approvals | CE, CSA, SEMKO, NEMKO, DEMKO | CE, SEMKO, NEMKO, DEMKO, ATEX/IECEx |
*Other cable lengths and liquid densities available upon request.
The Flygt ENM-10 is a part of the Level Sensor product range from Xylem, covering most level measuring needs.
