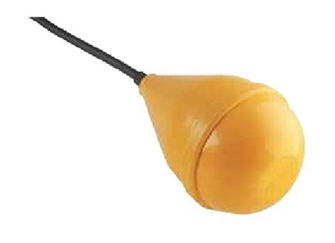

Three watertight chambers level regulator with freely suspended trim variation.
Unlike traditional floats that float on the water surface, the TAURUS, thanks to its special construction with integrated counter weight, remains underwater. Used in couple with another of the same type allows you to adjust the levels of minimum and maximum. It’s also possible to use a third and fourth regulator respectively for minimum and maximum alarm.
Unlike traditional floats that float on the water surface, the TAURUS, thanks to its special construction with integrated counter weight, remains underwater. Used in couple with another of the same type allows you to adjust the levels of minimum and maximum. It’s also possible to use a third and fourth regulator respectively for minimum and maximum alarm.
Application
INDUSTRIAL – Drainage Plants
DOMESTIC – Pumping Stations
MUNICIPALITY – Dirty water systems
The third watertight chamber and the weight of the metallic grit grant the typical overturning functioning
DOMESTIC – Pumping Stations
MUNICIPALITY – Dirty water systems
The third watertight chamber and the weight of the metallic grit grant the typical overturning functioning
Specification
| SPECIFICATION | |
|---|---|
| CABLE | H05 RN-F 3X1 |
| H07 RN-F 3X1 | |
| H07 RN-F 3G1 | |
| H07 RN8-F 3G1 | |
| H07 RN-F 3G1 Oil Resistant | |
| CASING | POLYPROPYLENE |
| SPECIFIC GRAVITY | 0.95-1.05Kg/dm³ |
| GROMMET | EPDM |
| POWER SUPPLY | MAX.10(8)A 250V |
| ACTIVATION ANGLE | 20˚ |
| DEPTH | MAX. 20M – 65.6FT |
| TEMPERATURE | MAX. +50˚C (+122˚F) |
| PROTECTION GRADE | IP68 |
| CLASS | I |
| CERTIFICATION | ![]() |
